BOUNDER POWER WHEELCHAIR

Power Tilt System (PTS)

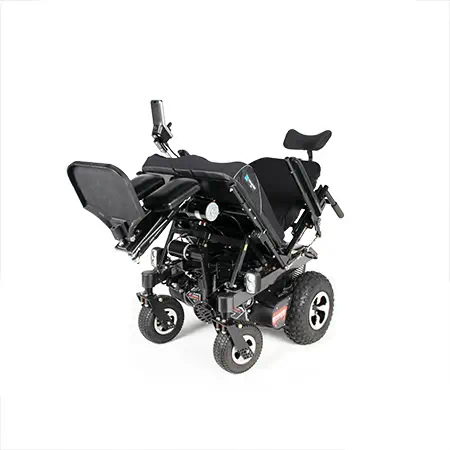

BOUNDER 300 with Power Tilt

21st Century Scientific's Power Tilt System (PTS) can be installed on all BOUNDER models. With a power tilt system, the user can control the angle between the seat and the ground. The front of the seat tilts up from the normal driving position, and the seat and back move together. Usually the tilt can be adjusted over about a 45 degree range. The seat to back angle is fixed, usually at 94.5 degrees, though other seat-to-back angles can be custom ordered. The arms and front rigging move with the seat. Most styles of BOUNDER arms and front rigging can be installed on power tilt systems, including DIPLR dual independent power legrests or a power elevating footboard. The PTS gives the user added independence and improved seating comfort. Many users prefer a tilt system in combination with a power recliner, power seat elevator.

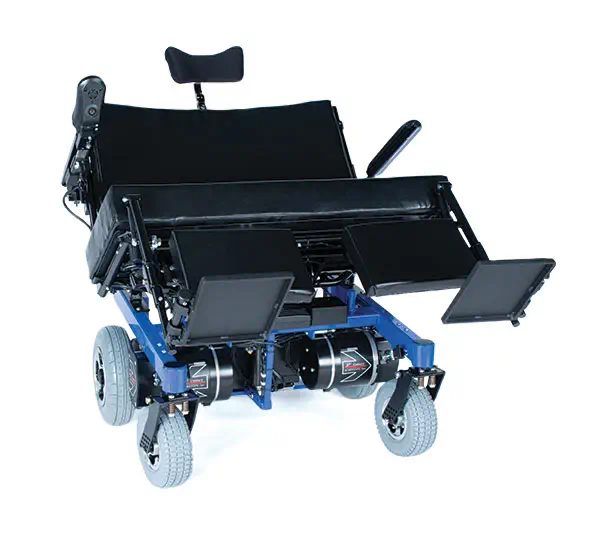

Big Bounder with Power Tilt
Big Bounder H-frame with 30 degree Power Tilt and
DIPLR HD (heavy duty dual independent elevating legrests)

OPTIONS

HEADREST - PTS does not include a headrest. Since most users do require a headrest, be sure to order one if you need it. Many styles are available; adjustable center post headrests are the most popular.

JOYSTICK PSS CTRL - Joystick Control of Power Seating System. Allows user to control up to six different actuators through the joystick. Speed and direction of movement are controlled by joystick position. Control is very smooth and actuator jerking is eliminated.

PSS XHD - Power Seating System Xtra Heavy Duty Upgrade (for users above 400 lbs). Usually the amount of tilt is limited to 30 degrees.

Can Be Combined with:

Big Bounder with Power Tilt

Power Power Recline

Available for users up to 1000 lb.

Sliding Back Power Reclne (SBPRS)

Power Sliding Back Power Recline

Available for users up to 450 lb.

Power Seat Elevator 2 (PSE2)

Power Seat Elevator 2

13" elevation for users up to 300 lb.
8" elevation for users up to 450 lb.
