BOUNDER DRIVE TRAIN OPTIONS
SUPER TORQUE MOTORS AND BRAKES
Super Reliable Gearless Brush TENV motor design!

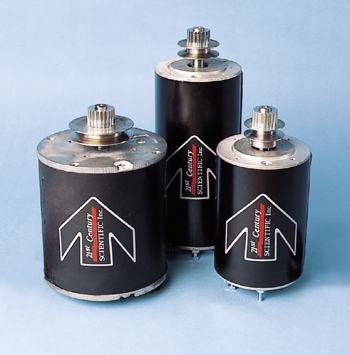

Motors Above from left to right:
Super Torque 3, Super Torque 2 (replacement parts only) & Super Torque 1 Motors (brakes not shown)
Super Torque 1S Motors on Extra Narrow 21.5" Base H-Frame
SUPER TORQUE 1 MOTORS & BRAKES (ST1M&B)
Available only with Special Order Bounder Conventional
-
Fast! - 6.4 to 9.0 MPH top speed, depending upon drive train selected
-
Very quiet operation
-
Reliable field proven 1/4 HP permanent magnet (PM) motors in production since 1979
-
No mechanical play in drive train
-
GEARLESS! No plastic gears to break; no gear noise; no gear lubricant leaks; THERE ARE NO GEAR BOXES!
-
TENV (totally enclosed non-ventilated) design keeps dust, dirt and splashes outside the motor
-
Typical brush life exceeds ten years!
-
Rebuildable motors are mounted horizontally under the seat
-
Reliable electric brakes have been in production since 1986
-
Will hold a 250 lb occupant on a 14 degree hill
-
Can be used for emergency stops
-
Spring actuated to hold chair securely on grades even if power is lost
|
Super Torque 2 Motors & Brakes (ST2M&B)-Discontinued
Same features as STMB listed above except:
-
Better hill climbing for users over 300 lbs
-
1/4 HP PM motors produce 30% MORE TORQUE, 25% less speed than ST1M&B
-
4.9 to 8.2 MPH top speed, depending upon drive train selected
-
Replaced by Super Torque 3 motors
-
Used on 21"-48" frame width BIG BOUNDER chairs from 1992 to 1999
-
Replacement parts still available
|

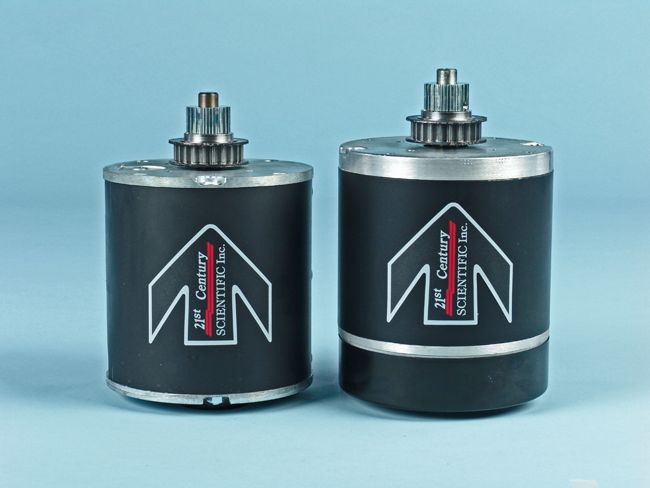

Super Torque 3 Motors & Brakes (ST3M&B)
STANDARD ON ALL H-FRAMES - Same features as ST1M&B listed above except:
-
Best hill climbing for all users
-
Nearly 1/2 HP PM larger diameter, more efficient motors produce:
- 20% more torque than ST1M&B with no speed reduction or 60% more torque with 25% less speed
- 6.6 to 12.2 MPH top speed, depending upon drive train selected
-
Larger diameter motor pulleys are more efficient and increase motor pulley and belt life
-
Improved motor and drive train efficiencies increase the driving range per battery charge while running cooler
-
OVERSIZED ST3 BRAKES have twice the holding power; will hold a 500 lb occupant on a 14 degree hill
|
Optional Super Torque 1S Motors & Brakes (ST1S M&B)
DRIVE PULLEY, BELT AND SPROCKET OPTIONS
|
Non-slip Panther drive (Standard on H-frame style)
|
|
V-belt drive
Conventional Frame Only
- Very smooth and almost silent
- Economical 4L belts are widely available
|
Both V-belt and Panther drive systems feature different sizes of interchangeable drive (motor) pulleys (or sprockets), which allow the top speed and torque of the chair (or gurney) to be matched to the needs of the user. Two sizes of drive wheel pulleys are also usually available for conventional frames. The factory will optimize drive train ratio based upon user profile information gathered when the chair or gurney is ordered. The dealer can easily make changes in the field should the user's needs change. |
DRIVE WHEEL OPTIONS
H-Frame Chairs and Gurneys: |
DW 13M SMOOTH |
12.75"x4.00" metal drive wheels w/smooth tires |
DW 13M KNOBBY |
12.75"x4.00" metal drive wheels w/knobby tires |
Conventional Power Chairs and Gurneys, and Manual Chairs: |
DW 20M |
20x2.125" black metal drive wheels |
DW 16M |
16"x2.125" black metal drive wheels |
Manual Chairs and Gurneys: |
DW 24 PHR |
24"x1.75" metal spoked drive wheels w/handrims |
DW 24PHRHD |
24"x2.125" metal spoked drive wheels w/handrims |
DW 26PHR |
26"x2.125" metal spoked drive wheels w/handrims |
