BIG BOUNDER BARIATRIC POWER WHEELCHAIRS

BIG BOUNDER H-Frame:
Available for users up to 1000 lbs. with upgrades
BIG BOUNDER H-Frame power chairs are configured specifically for bariatric users. They are custom built to each user's unique dimensions. The electronics and drive train are optimized at the factory for the user. Available in seat widths from 21” to 48”. Very narrow overall widths (as little as 2.5” wider than the seat width) result in improved maneuverability through doors and tight spaces. » 500 lb capacity is standard » 700 lb and 1000 lb weight capacity options

STANDARD FEATURES » Durable H-style frame uses 2.5” x 1.5” x 0.125” wall steel - TIG welded for superior strength » 0.120” wall steel seat rails and back posts - for extra strong seat and back » Super Torque 3 motors and brakes » Quiet non-slip Panther synchronous drive belt system - won’t slip in rain or snow; similar to those used on many motorcycles » Sliding dual group 27 battery box - for extended range and ease of maintenance » Xtra Duty 12 position adjustable suspension forks - with oversized 1" diameter bearings and fork stems » Sheet metal pan seat » Super Duty sling back upholstery - double liner, cap, and web strap under every screw; attached with machine screws » Detachable desk length arms » Anti-tipping wheelie wheels » UE1 Series electronics - 6 drive programs, battery condition meter, diagnostics, and more » Smart electric brake release - for easy pushing by an attendant » 9” x 3.50” steel caster wheels - excellent on most surfaces including grass and dirt roads » 12.75” x 4.00” steel drive wheels - available with smooth or knobby treads » Safety taillights built in - turn on and off with chair power (turn on and off with light switch if headlight ordered) » Very stable rear wheel drive - does not fishtail at high speeds unlike front and mid-wheel drives » Durable black powder coated frame » Fully automatic 8A dual mode battery charger - charges both gel-cell and lead acid batteries » Detailed Owner's Manual » Easy to service and maintain
DIMENSIONS * Seat Width: 21” to 48” Seat Depth: 12” to 23” Seat Height: 19” to 25” Back Height: 15” to 24” Also custom dimensions * Some restrictions apply	POWER SEATING OPTIONS Recline, tilt, seat elevate, and reverse tilt Dual independent power elevating legrests (DIPLR) Toggle switch control or through-the-joystick proportional control
WARRANTY* ONE year warranty on entire chair 5 year warranty on Super Torque 3 Motor & Brake drive trains** 5 year H-frame base warranty 2 year H-frame seat warranty * Limited warranties - some restrictions apply. See complete warranty for more information ** Includes motors, brakes, drive wheels, drive wheel sprockets (drive belts, tires, inner tubes, flat-free inserts, motor sprockets and bearings not included)

OPTIONS
Power 700 Option for users up to 700 lb All BIG BOUNDER H-Frame features and... » All frame members either .120” wall or solid bar stock » Reinforced footrests » Solid Back posts » Cross strut welded between push handle tips or back posts » Reinforced seat mounts » Rated for a 700 lb user	Power 1000 Option for users up to 1000 lb All BIG BOUNDER H-Frame features, Power 700 option features and … » Super Torque 4M Motors (ST4M) » Solid bar stock arm tips » Solid bar stock in many frame members » Rated for a 1000 lb user

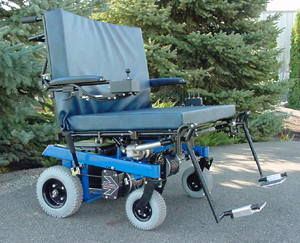

BIG BOUNDER with Reverse Tilt OPTIONS FOR MOST BOUNDER MODELS
Independent Drive Wheel Suspension (500 max user weight) Durable powder coated frame colors Several seat and back options, including Captains seat Many types of front rigging and arms Several styles of armrest, headrest and calf pads Swing-away hand control extension slide Flip up arms Angle adjustable footplates Center Mount Angle Adjustable Footboard Footplate roller bumpers Headrests: Center post, sling and power Power seating: Tilt, recline, elevate, legrests	Several front caster and drive wheel sizes Respirator shelves and O2 bottle holders Many electronic options Hand, chin, bib, sip-n-puff, switch and attendant controls Power chin control boom Many accessories: Lights, horn, rear view mirror, fan, electric leg bag emptier *See current order/quote forms and price lists for more information

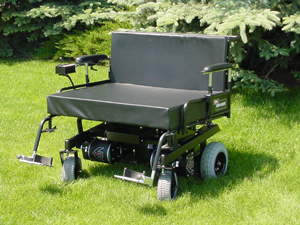

39" Wide BIG BOUNDER with 5" Custom Seat Cushion
